Solid Deck 3-Runner AS/RS Pallet
Easy-clean HDPE three-runner pallet with anti-slip pads and optional steel reinforcement for rack and conveyor handling.
- Material
- HDPE
- Process
- Injection molded
- Structure
- Solid deck · 3 runners
- Entry
- 4-way
- Colors
- Blue, green, white or custom
- Steel tubes
- Optional; layout by project
Sizes & Reference Performance
| Size | Height | Reference weight | Steel-tube range |
|---|---|---|---|

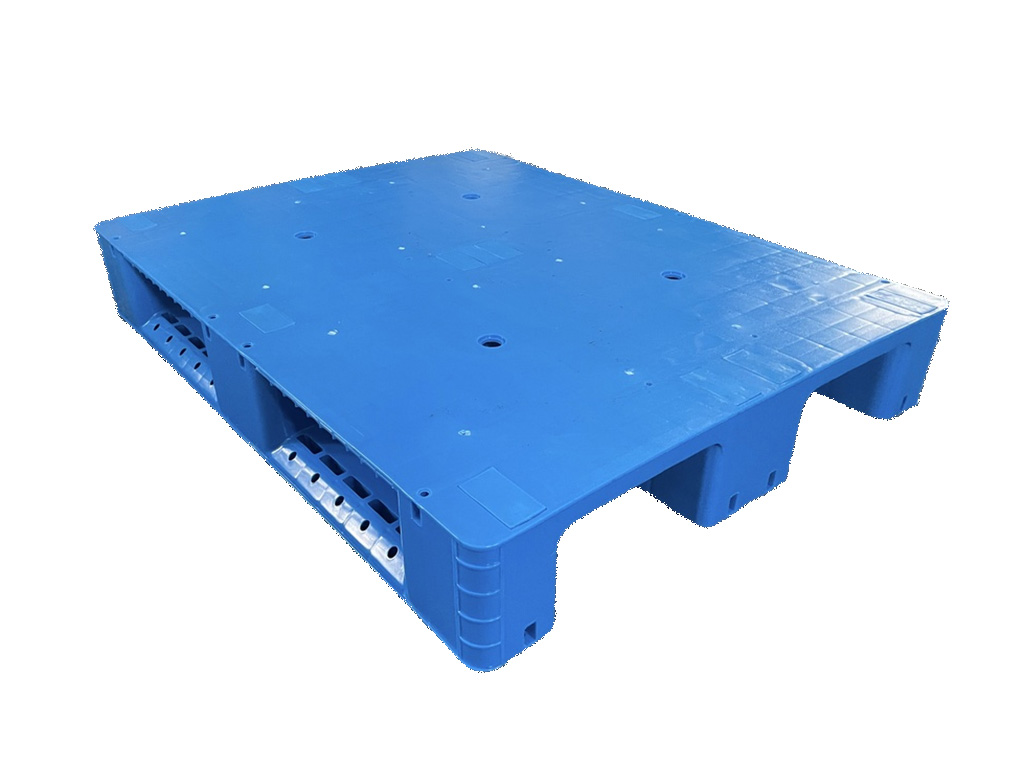

| 1000 × 800 mm | 150 mm | 13–17 kg | 0–8 tubes |

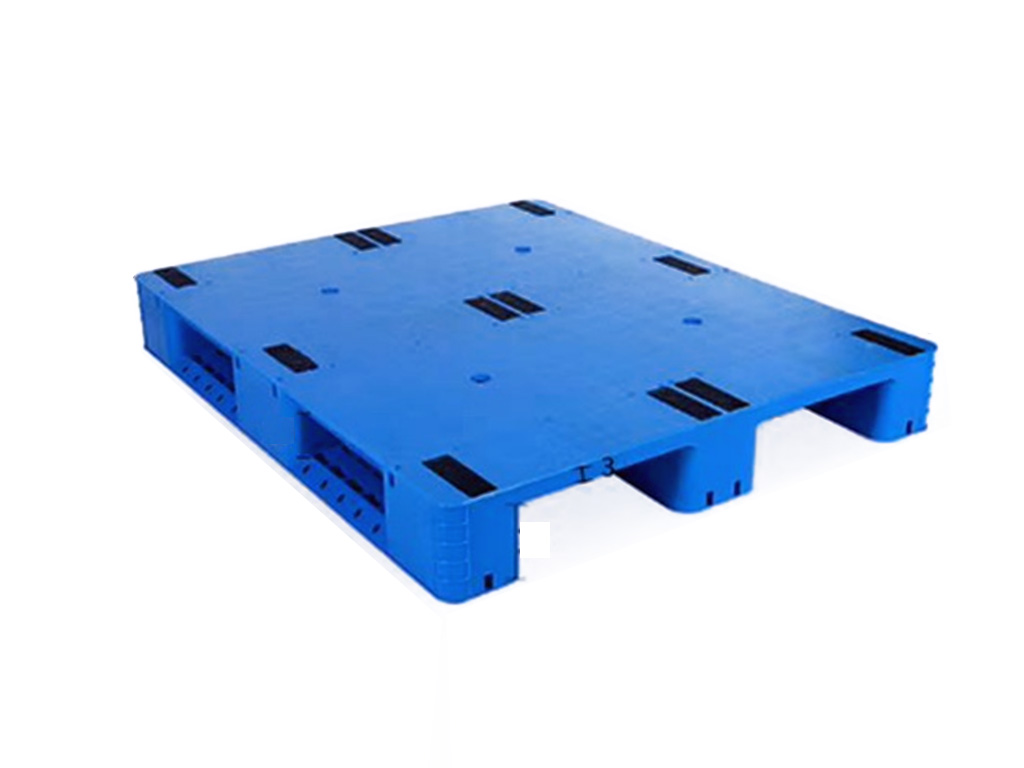

| 1100 × 1100 mm | 150 mm | 16–21 kg | 0–8 tubes |

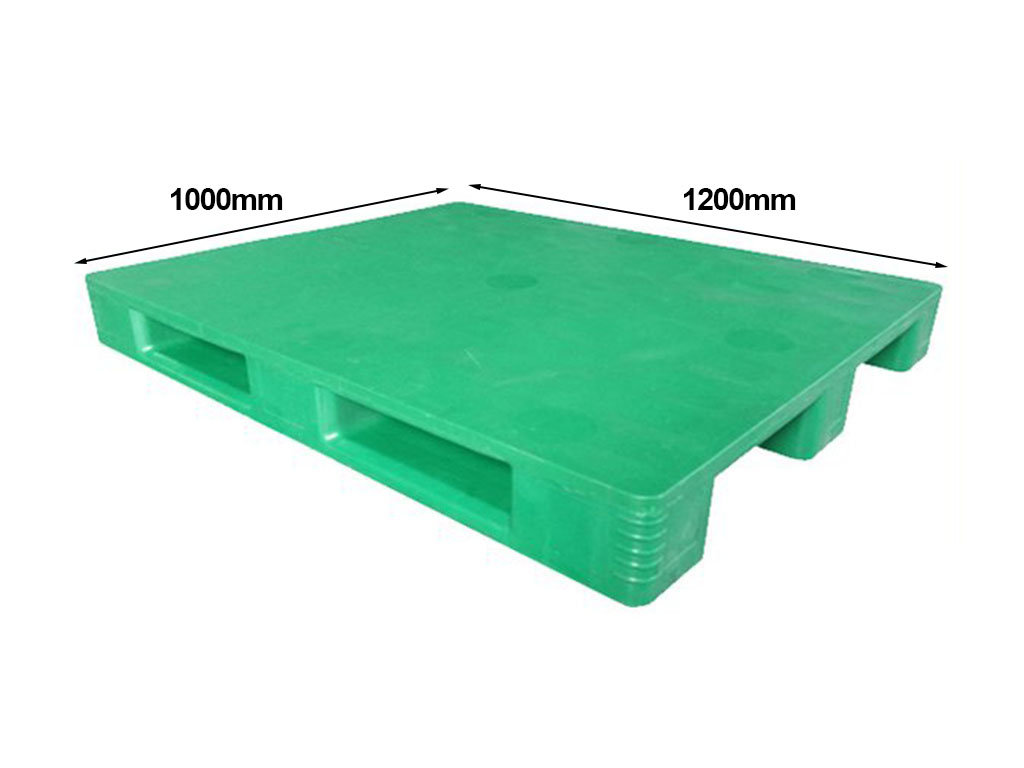

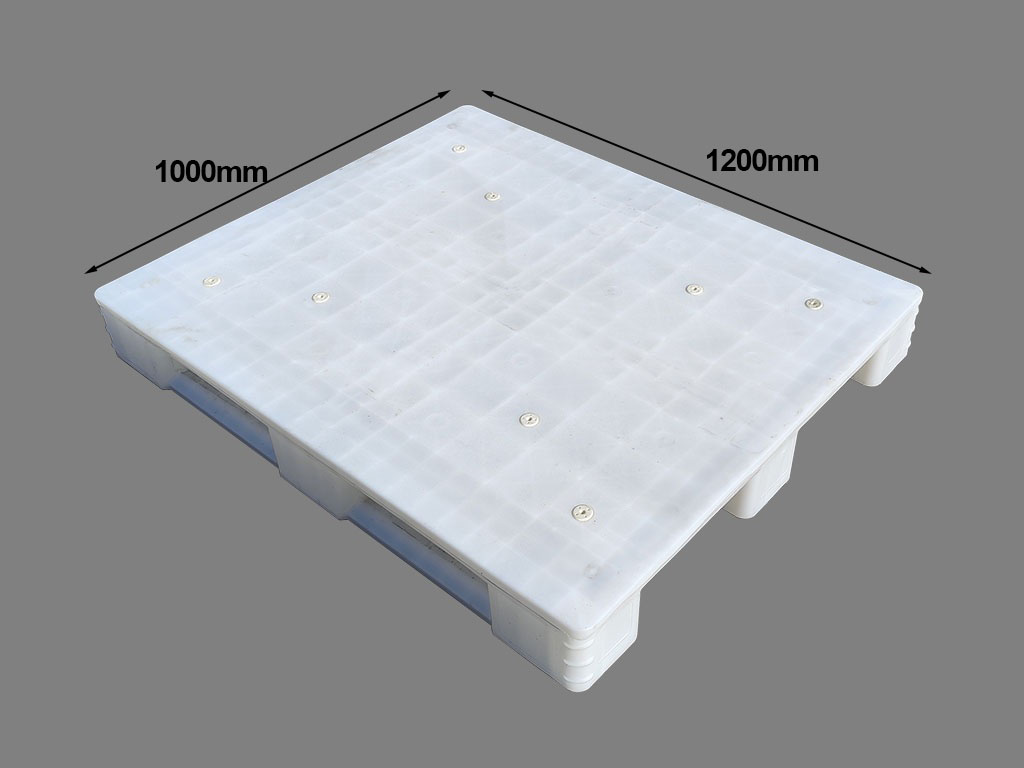

| 1200 × 1000 mm | 150 mm | 17–22 kg | 0–8 tubes |

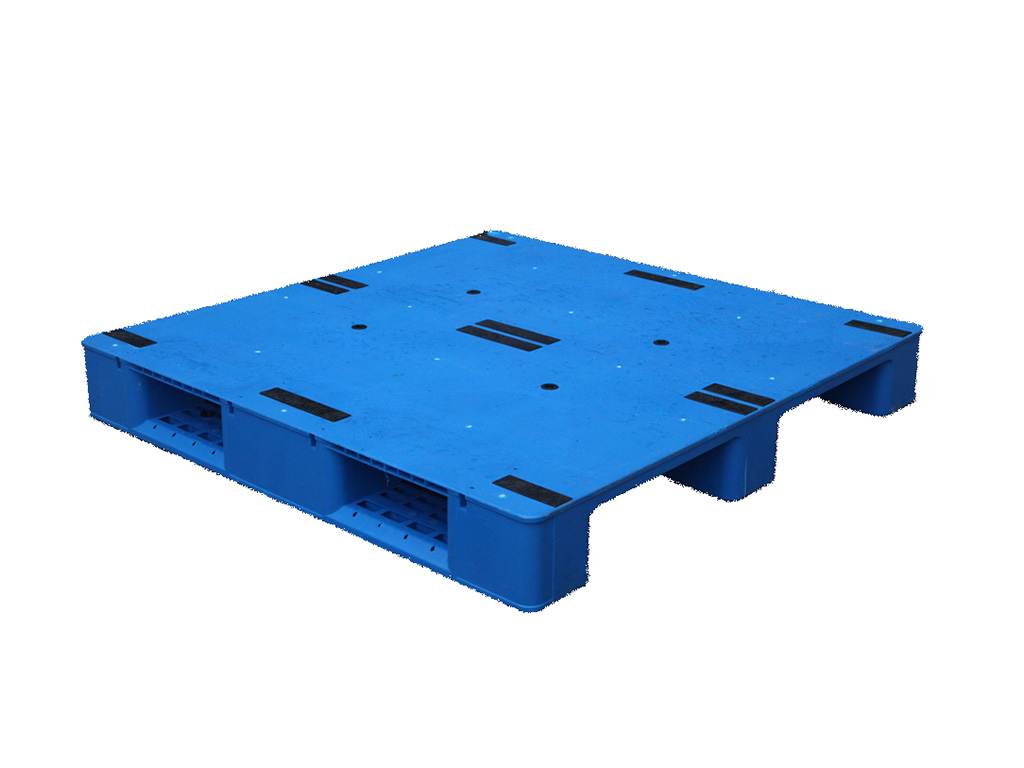

| 1200 × 1200 mm | 150 mm | 19–25 kg | 0–8 tubes |

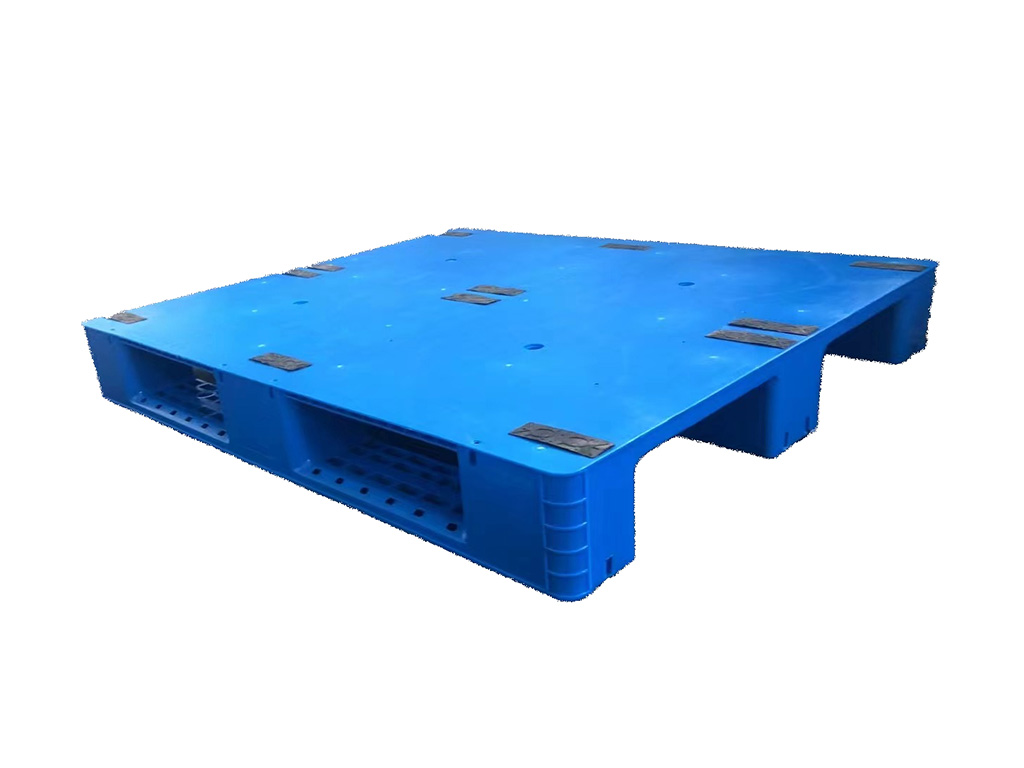

| 1300 × 1100 mm | 150 mm | 20–26 kg | 0–8 tubes |

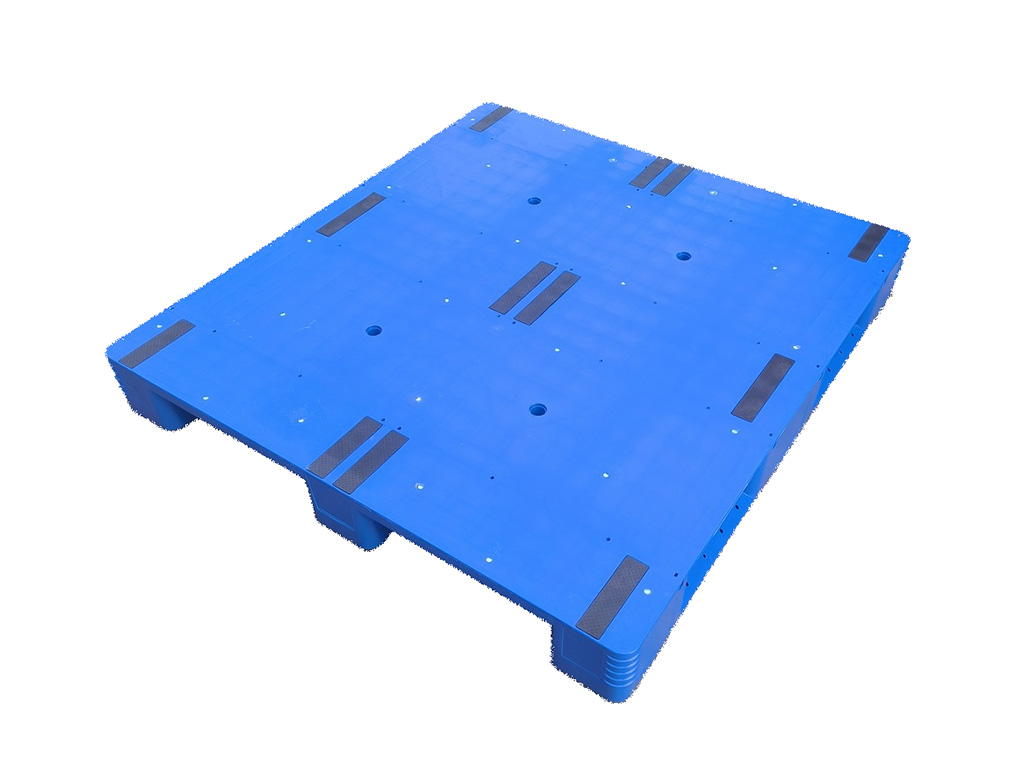

| 1400 × 1200 mm | 150 mm | 23–29 kg | 0–8 tubes |
- Static load
- 5,000 kg reference
- Dynamic load
- 1,500 kg reference
- Rack load
- 1,250 kg reference
- Customization
- Color / logo / marking / steel
These values support preliminary selection. Ratings vary by size, steel layout and operating condition; the approved data sheet, drawing and test conditions take precedence.
Structure & Application Notes
Best fit
The closed deck is designed for applications that value easy cleaning, spill control and a continuous load surface. Integrated anti-slip pads improve carton and container stability, while the three-runner base supports rack beams and powered conveyor sections.
Configuration options
- Anti-slip pads on the deck as standard for this family
- Optional deck and runner steel tubes for defined rack spans
- Custom colors, logo, printing and traceability marking
- Perimeter lips, drainage details or RFID zones where the selected mold permits
Engineering note
Published loads support preliminary selection. Actual performance varies with mold, temperature, support condition, load distribution and reinforcement. The approved data sheet and test method take precedence for every order.
