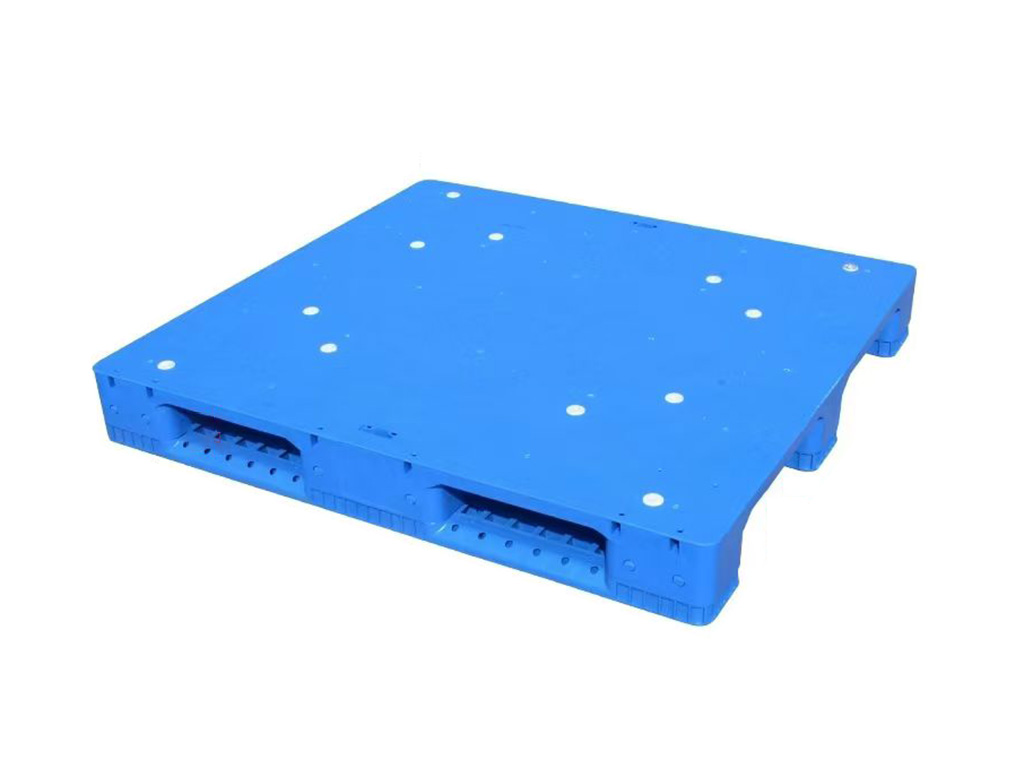

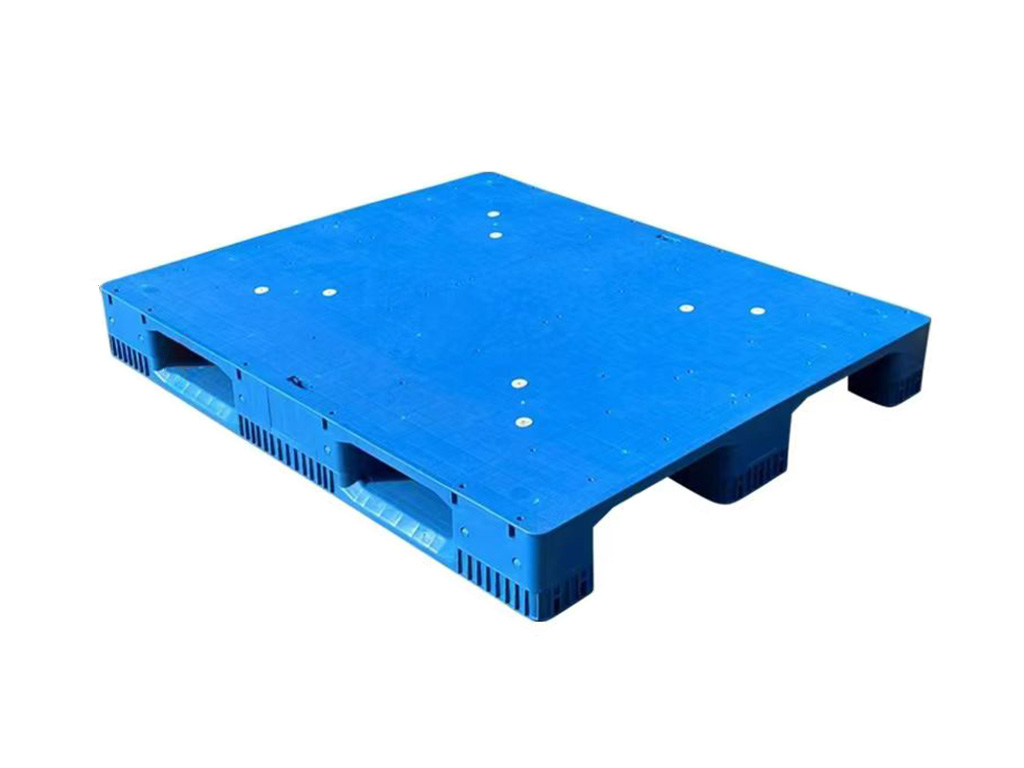

Reinforced Solid Deck 3-Runner Pallet
Heavy-duty solid HDPE pallet platform with anti-slip pads and expanded steel reinforcement options for demanding AS/RS rack spans.
- Material
- HDPE
- Process
- Injection molded
- Structure
- Reinforced solid deck · 3 runners
- Entry
- 4-way
- Colors
- Blue, green, white or custom
- Steel tubes
- Project-configured reinforcement
Sizes & Reference Performance
| Size | Height | Reference weight | Steel-tube range |
|---|---|---|---|

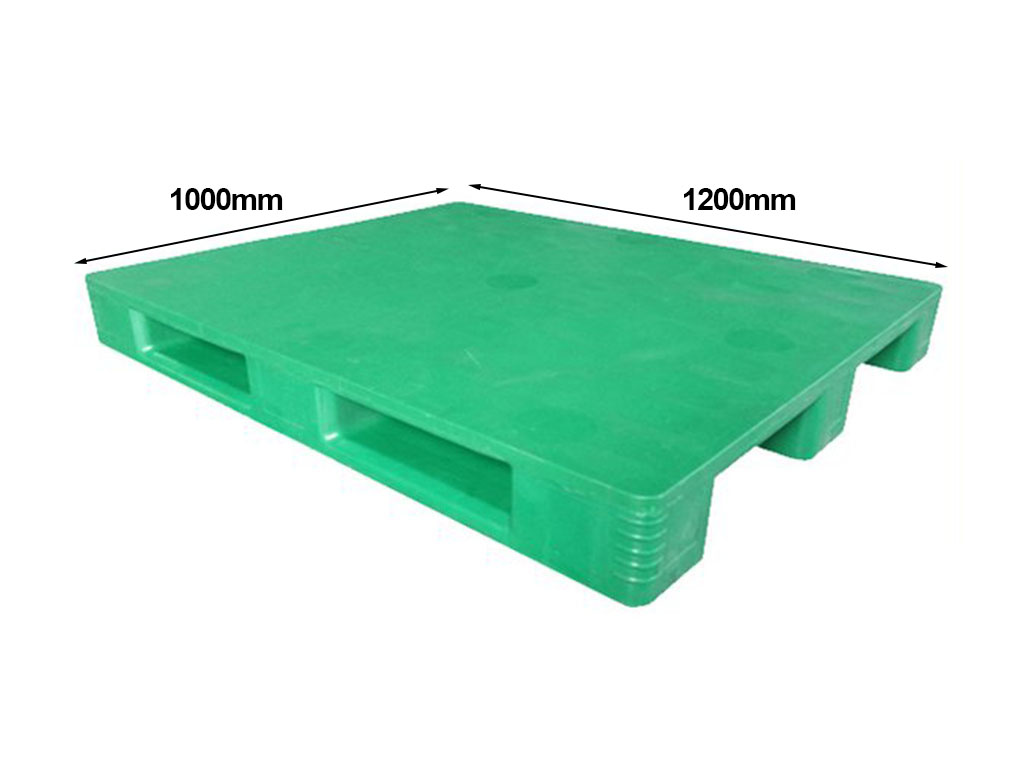

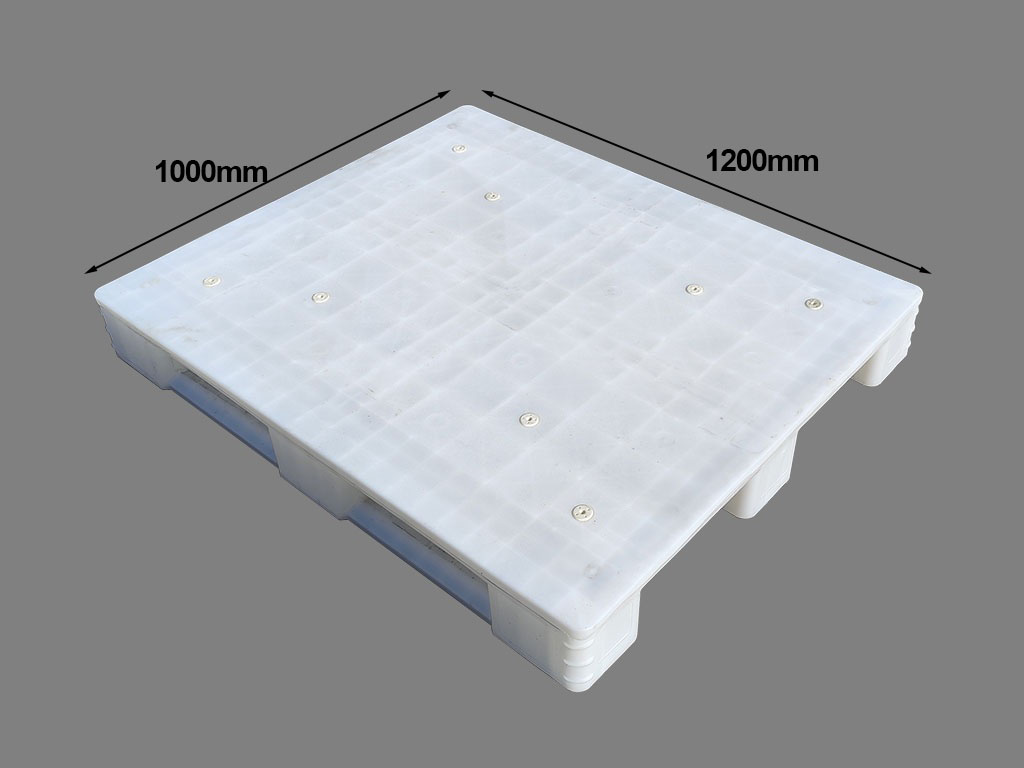

| 1200 × 1000 mm | 150 mm | 21–28 kg | 3–12 tubes |

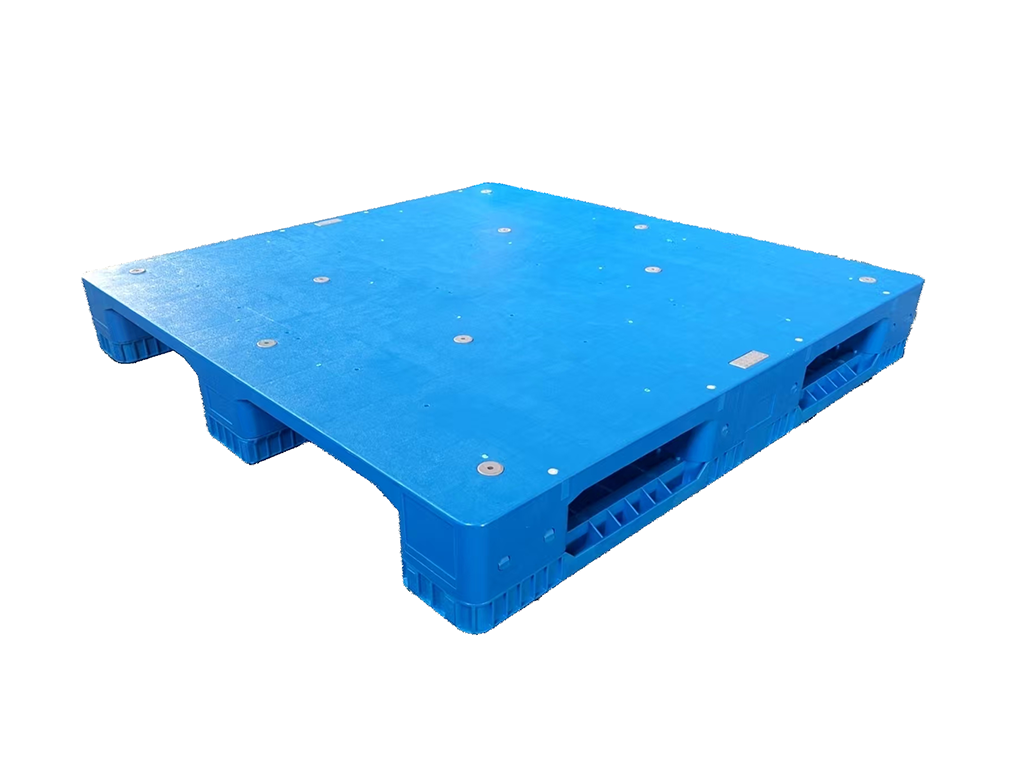

| 1200 × 1200 mm | 150 mm | 24–31 kg | 3–12 tubes |
- Static load
- 6,000 kg reference
- Dynamic load
- 2,000 kg reference
- Rack load
- 1,500 kg reference
- Customization
- Color / logo / marking / steel
These values support preliminary selection. Ratings vary by size, steel layout and operating condition; the approved data sheet, drawing and test conditions take precedence.
Structure & Application Notes
Best fit
This family starts from the solid three-runner concept and adds a higher reinforcement envelope for demanding unit loads, wider support spans and long service cycles. It is intended for projects where deflection management and repeatability are more important than minimum pallet weight.
Configuration options
- Multiple steel-tube layouts through deck and runners
- Anti-slip pads for improved unit-load stability
- Custom color, marking, molded logo and identification features
- Pre-production interface and sample review for automated handling systems
Engineering note
“Heavy duty” does not replace project verification. Final rack capacity must be confirmed against the exact support span, temperature, dwell time, load distribution and steel layout. Published loads support preliminary selection.
