Grid Deck Full-Perimeter AS/RS Pallet
Ventilated HDPE pallet with a full-perimeter base for stable stacking, conveying and rack interfaces, available with steel reinforcement.
- Material
- HDPE
- Process
- Injection molded
- Structure
- Grid deck · full perimeter
- Entry
- 4-way
- Colors
- Blue, green or custom
- Steel tubes
- Optional; layout by project
Sizes & Reference Performance
| Size | Height | Reference weight | Steel-tube range |
|---|---|---|---|
| 1100 × 1100 mm | 150 mm | 15–20 kg | 0–8 tubes |

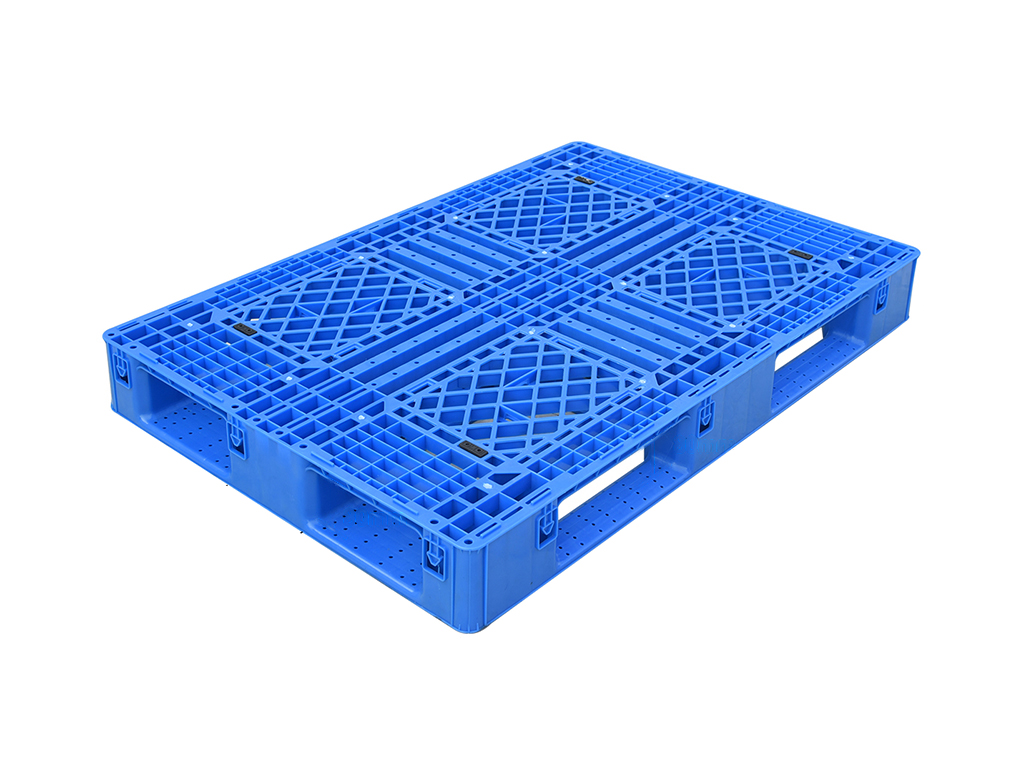

| 1200 × 800 mm | 150 mm | 14–18 kg | 0–8 tubes |

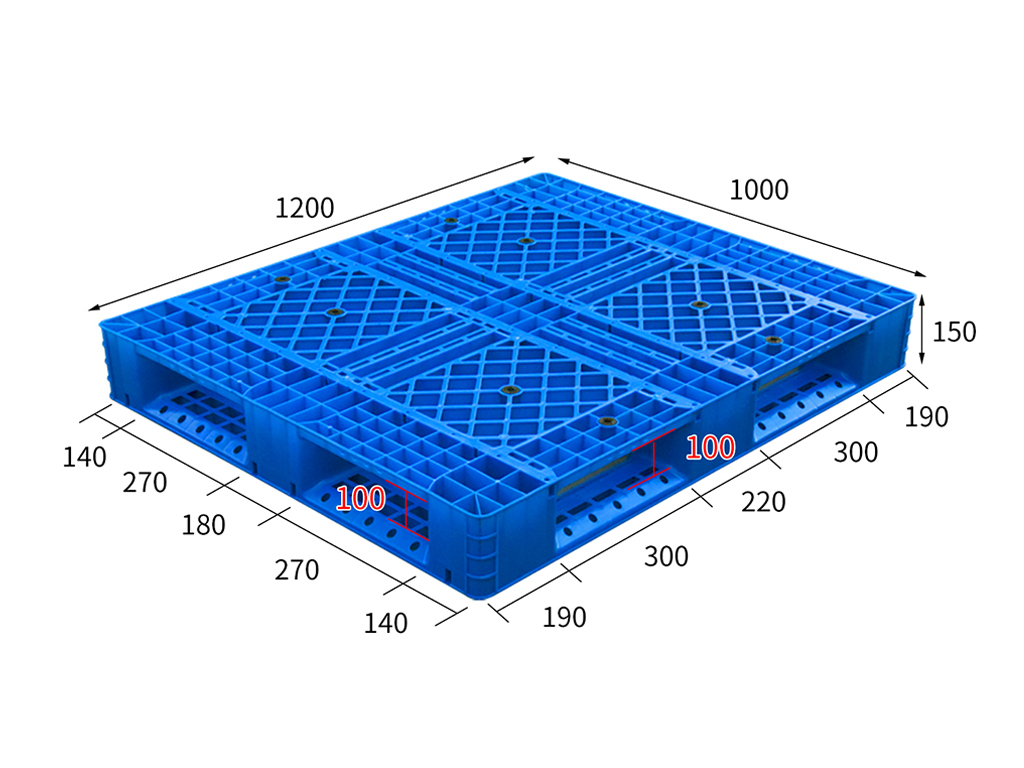

| 1200 × 1000 mm | 150 mm | 16–21 kg | 0–8 tubes |

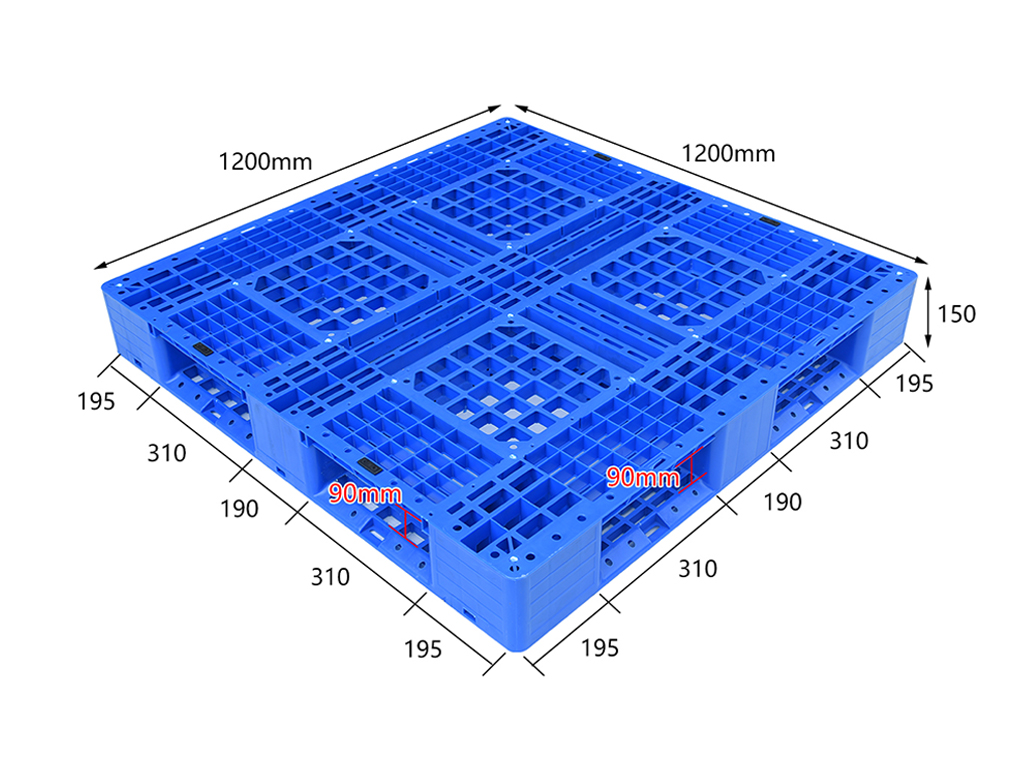

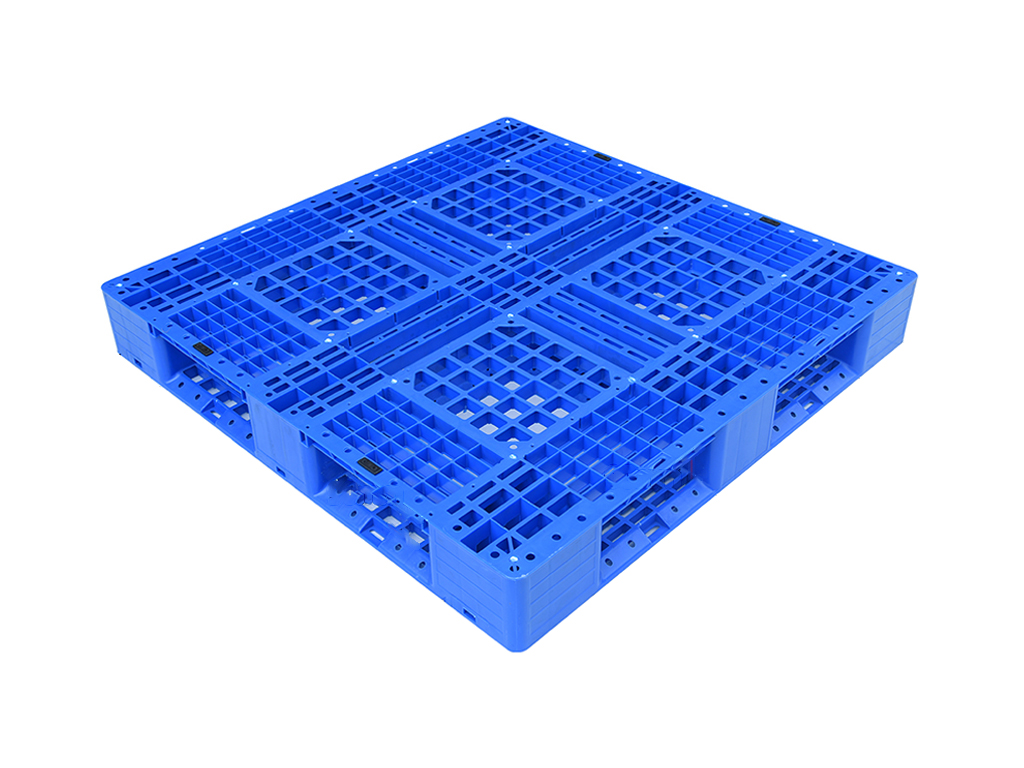

| 1200 × 1200 mm | 150 mm | 18–24 kg | 0–8 tubes |

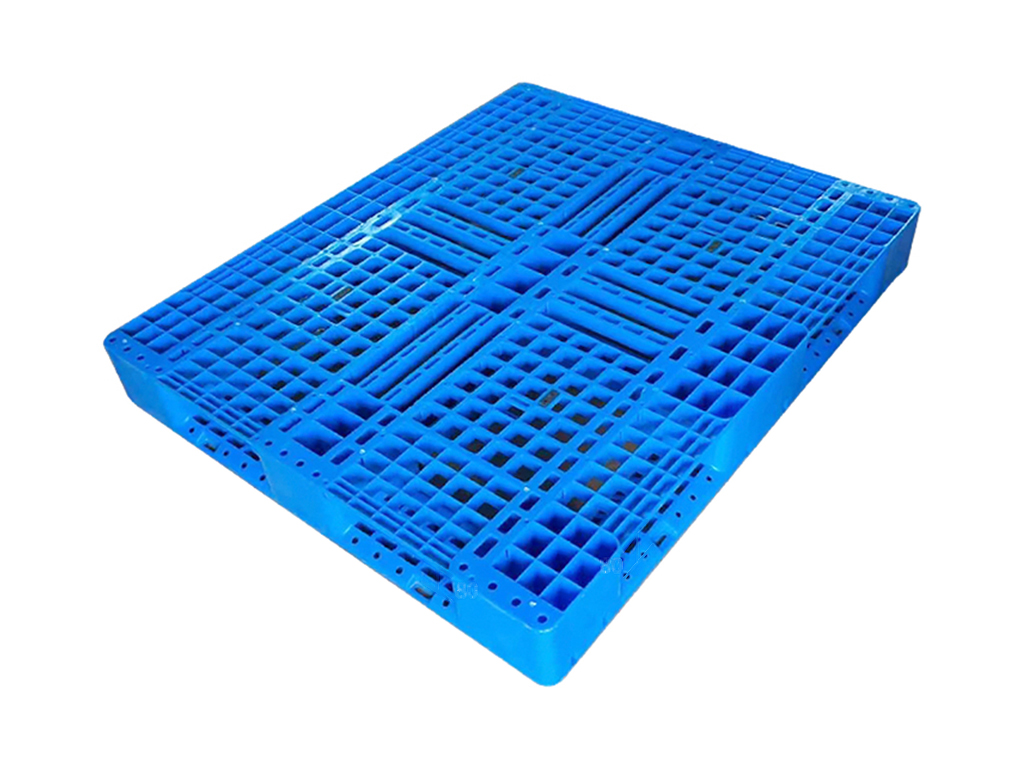

| 1300 × 1100 mm | 150 mm | 19–25 kg | 0–8 tubes |

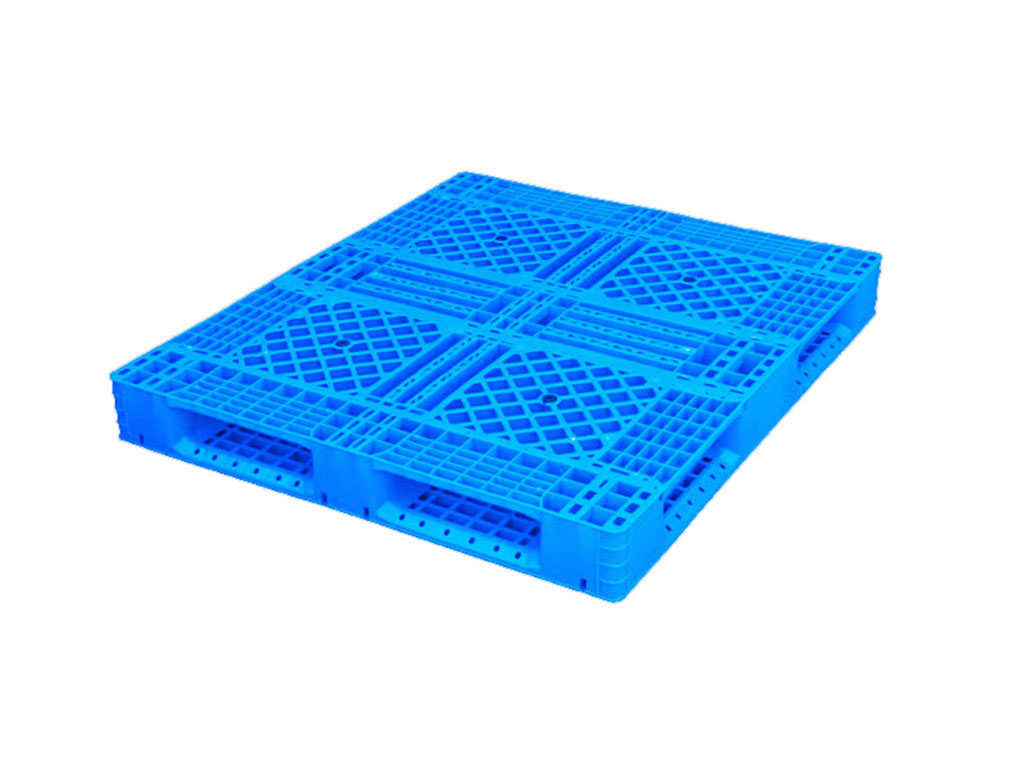

| 1400 × 1200 mm | 150 mm | 22–28 kg | 0–8 tubes |
- Static load
- 4,000 kg reference
- Dynamic load
- 1,500 kg reference
- Rack load
- 1,000 kg reference
- Customization
- Color / logo / marking / steel
These values support preliminary selection. Ratings vary by size, steel layout and operating condition; the approved data sheet, drawing and test conditions take precedence.
Structure & Application Notes
Best fit
The full-perimeter base provides continuous bottom contact for stable stacking and can improve compatibility with selected conveyors, pallet stops and rack-support arrangements. The grid deck keeps the platform ventilated and easier to inspect.
Configuration options
- Optional steel tubes to control deck and base deflection
- Anti-slip components, edge details and identification areas where supported
- Custom colors, printing, logo and fleet marking
- Drawing review for conveyor rollers, chain conveyors and support rails
Engineering note
Published loads support preliminary selection. Final capacity depends on the selected mold, temperature, loading pattern, support span and reinforcement. Always use the approved project specification for purchase and operation.
