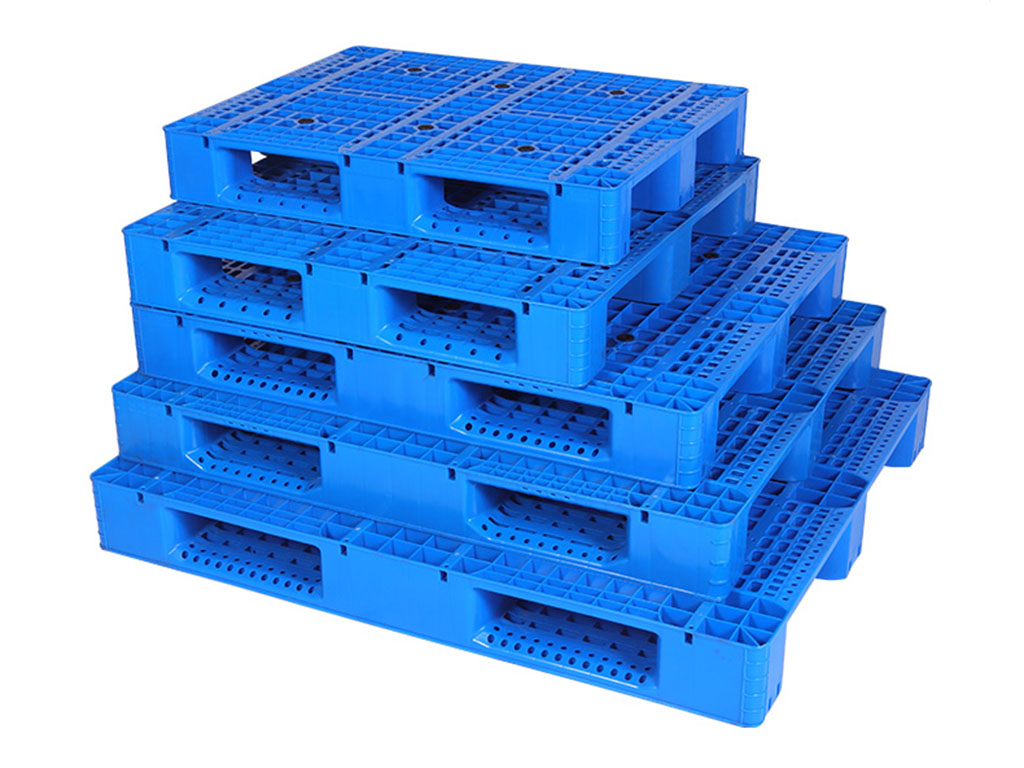

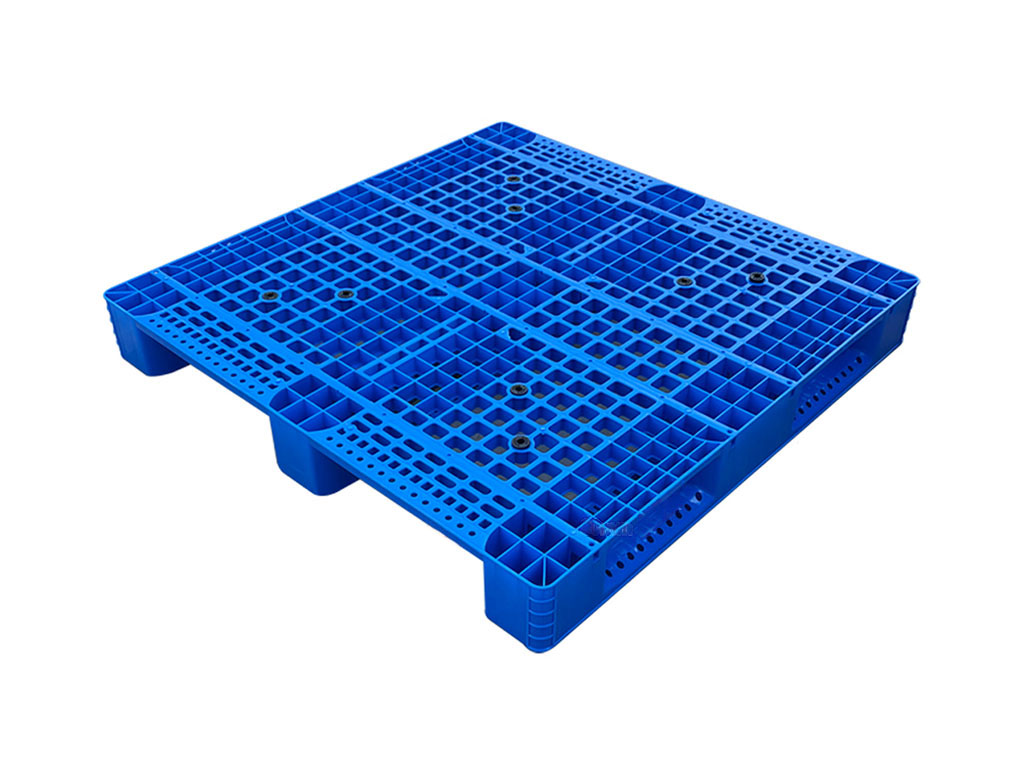

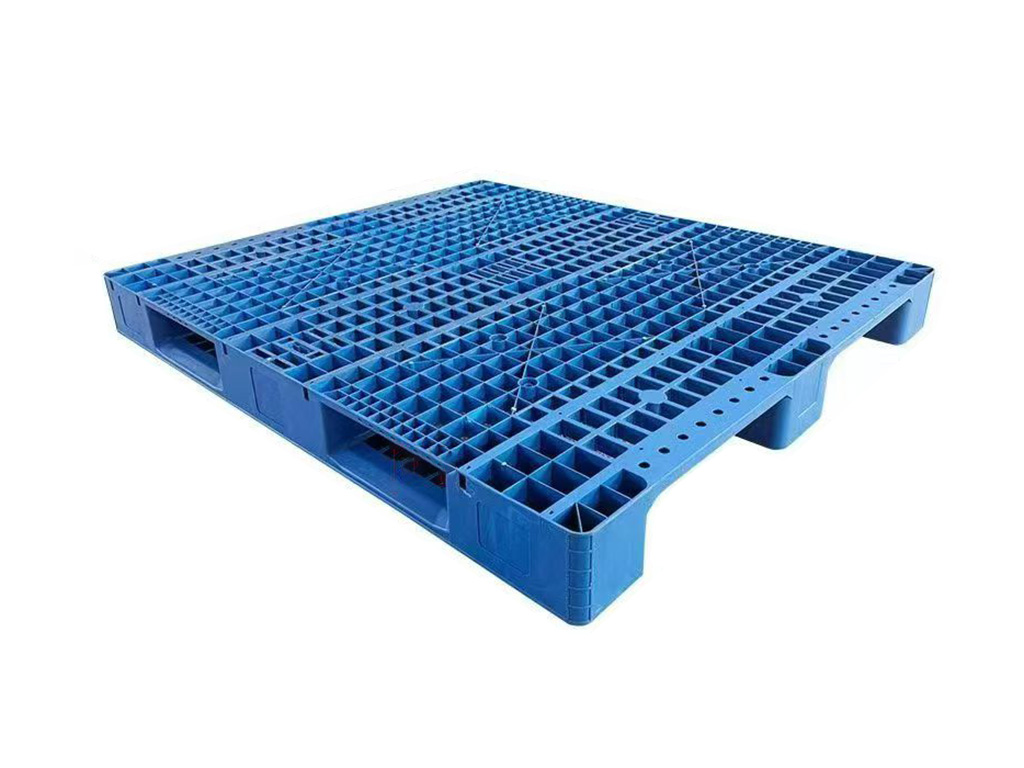

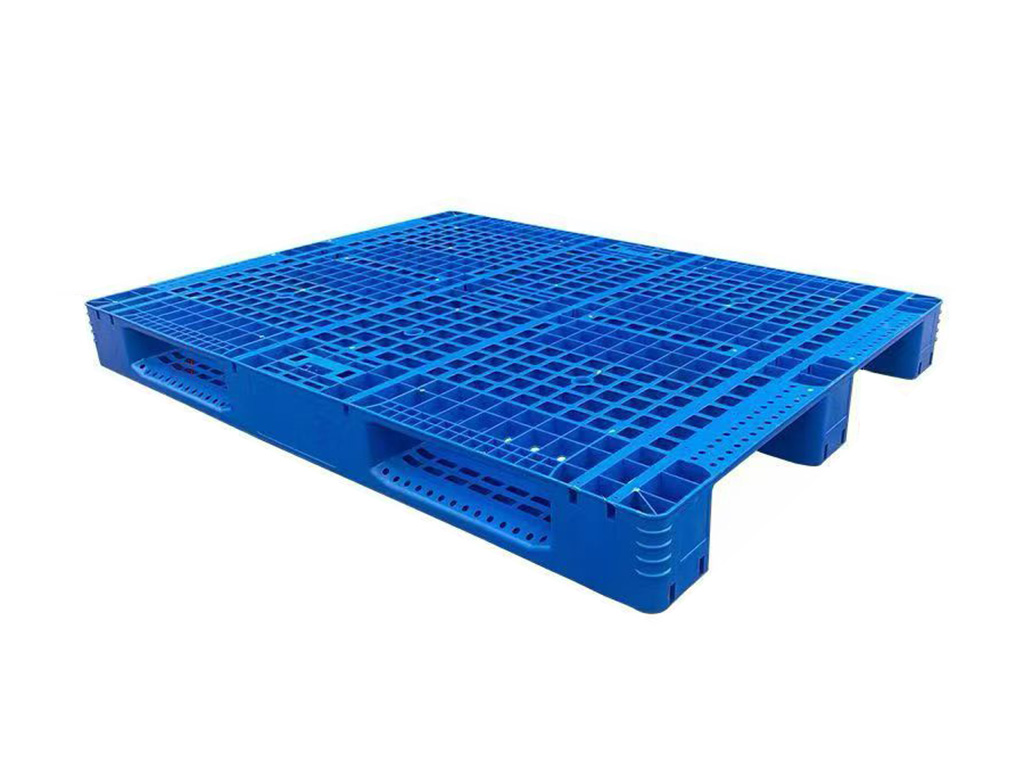

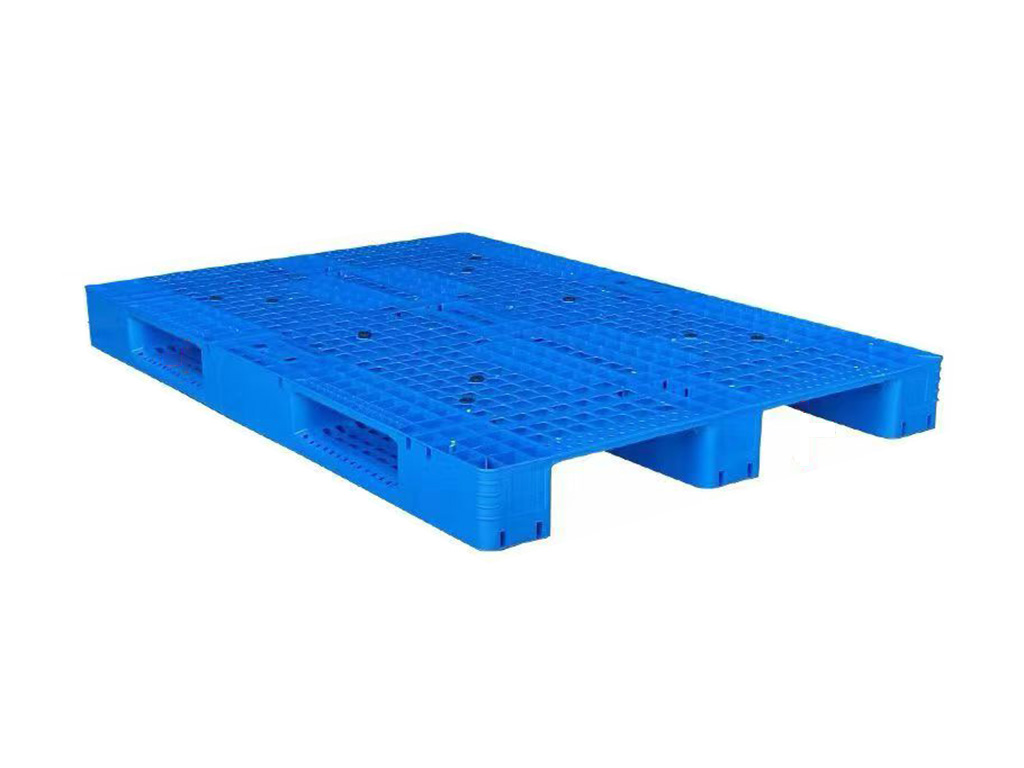

Grid Deck 3-Runner AS/RS Pallet
Ventilated HDPE pallet with a three-runner base, four-way entry and optional steel reinforcement for automated warehouse projects.
- Material
- HDPE
- Process
- Injection molded
- Structure
- Grid deck · 3 runners
- Entry
- 4-way
- Colors
- Blue, green or custom
- Steel tubes
- Optional; layout by project
Sizes & Reference Performance
| Size | Height | Reference weight | Steel-tube range |
|---|---|---|---|
| 1100 × 1100 mm | 150 mm | 14–18 kg | 0–8 tubes |
| 1200 × 800 mm | 150 mm | 13–17 kg | 0–8 tubes |
| 1200 × 1000 mm | 150 mm | 15–20 kg | 0–8 tubes |
| 1200 × 1200 mm | 150 mm | 17–22 kg | 0–8 tubes |
| 1300 × 1100 mm | 150 mm | 18–23 kg | 0–8 tubes |

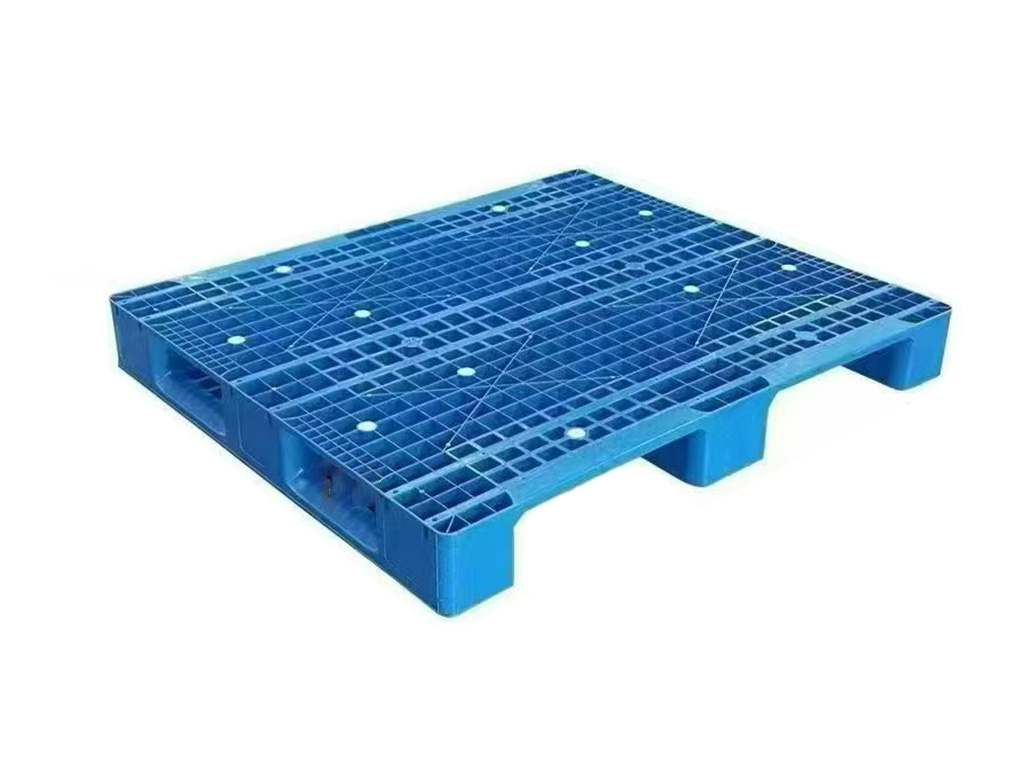

| 1400 × 1200 mm | 150 mm | 20–25 kg | 0–8 tubes |
- Static load
- 4,000 kg reference
- Dynamic load
- 1,500 kg reference
- Rack load
- 1,000 kg reference
- Customization
- Color / logo / marking / steel
These values support preliminary selection. Ratings vary by size, steel layout and operating condition; the approved data sheet, drawing and test conditions take precedence.
Structure & Application Notes
Best fit
The open grid deck reduces material weight and supports airflow, drainage and easy visual inspection. Three continuous runners create stable contact on rack beams and common conveyor arrangements, while four-way entry keeps forklift handling flexible.
Configuration options

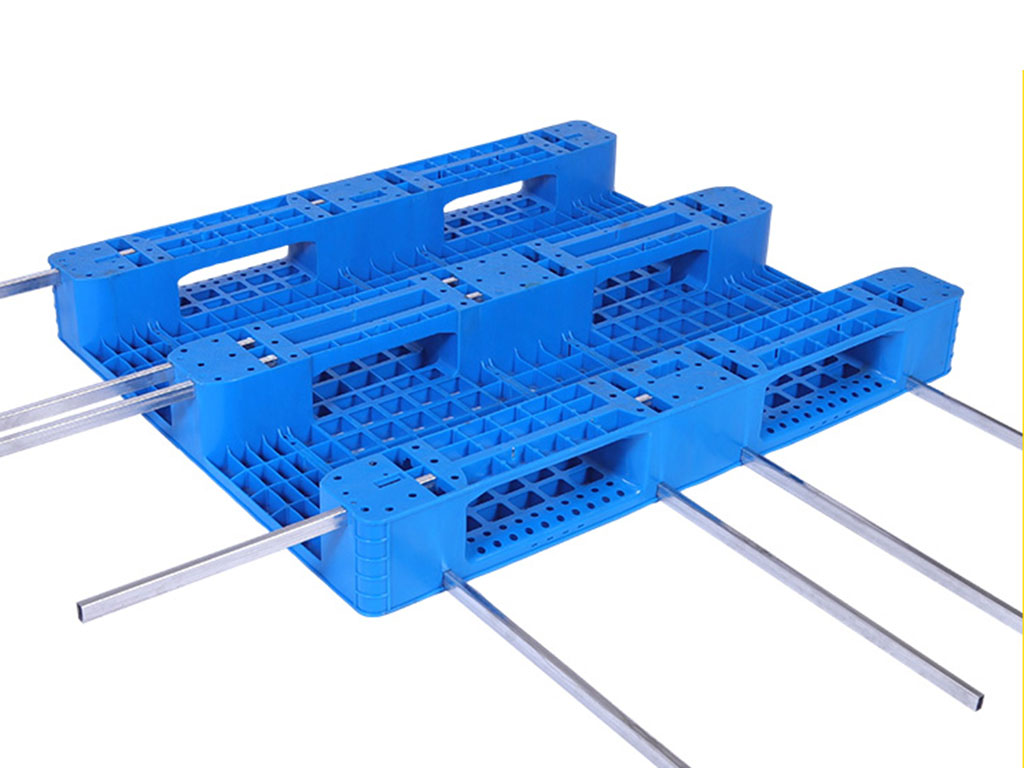

- Steel tubes in the deck and/or runners to manage rack deflection
- Anti-slip plugs, edge lips and identification areas where the mold permits
- Custom color, molded logo, screen printing or sequential marking
- Sample and drawing confirmation for conveyor, shuttle and stacker-crane interfaces
Engineering note
Published loads support preliminary selection and are not a universal rating. Final capacity depends on temperature, load distribution, support span, steel-tube configuration and test method. Confirm every AS/RS application against the approved drawing and test agreement.
